F-804739.24064-B FAG Spherical Roller Bearing

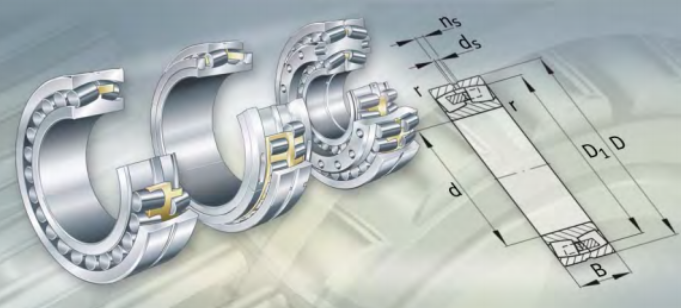

FAG Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages.

The inner rings have cylindrical or tapered bores. The symmetrical barrel rollers orient themselves freely on the concave outer ring raceway. As a result, shaft flexing and misalignment of the bearing seats are compensated, see section Compensation of angular misalignments.

Get A Quote
Contact Us

FAG Spherical roller bearings

Various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

Dimension table · Dimensions in mm
Designation Design Mass Dimensions
m d D B
#NAME? min.          =
Z-568924.23236-B 2 39 180 320 112
Z-536423.24138-B 1 42,1 190 320 128
Z-568923.23140-B 2 42,8 200 340 112
Z-541020.24140-B1) 1 51,3 200 340 140
Z-522444.24140-B 1 51,4 200 340 140
Z-572037.24044-B 2 40,6 220 340 118
F-804288.23144-B 2 55,2 220 370 120
Z-527514.24144-B 1 67 220 370 150
F-803679.24048-B 2 43,6 240 360 118
Z-517299.24148-B 1 81 240 400 160
Z-541021.24148-B1) 1 81 240 400 160
Z-572036.24052-B 2 66 260 400 140
Z-530662.24152-B 1 111 260 440 180
Z-561779.24152-B1) 1 111 260 440 180
Z-538565.24056-B 2 70 280 420 140
Z-531079.24156-B 1 119 280 460 180
Z-531119.24060-B 2 101 300 460 160
Z-541538.24160-B 1 160 300 500 200
F-804739.24064-B 2 107 320 480 160
Z-541539.24164-B 1 199 320 540 218
F-804546.24076-B 2 154 380 560 180
Z-528479.24184-B 1 443 420 700 280

WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in bearing business with more than eighteen years, export to worldwide countries, as America, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation customers. WHCD Bearing company will provide professional and prompt solution for customers.Original Quality and Warranted, and Bearing experts team support customer service. Various bearing types for customer choose:

Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
