SKF Self-aligning ball bearings 2310M

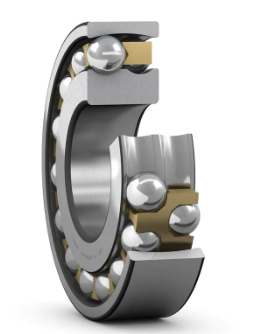

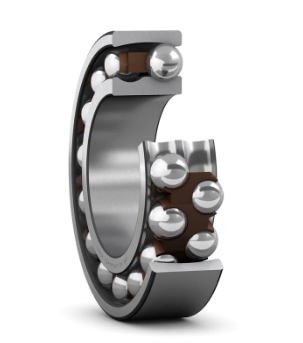

SKF Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Get A Quote
Contact Us

SKF Self-aligning ball bearings

Various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

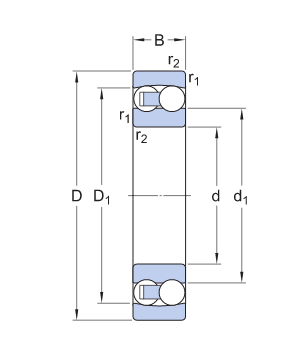

Designation Principal dimensions Basic load ratings Speed ratings
dynamic static Reference speed Limiting speed
d[mm] D[mm] B[mm] C[kN] C0[kN] [r/min] [r/min]
 2306E-2RS1KTN9   30   72   27   22.5   6.8   18 000   6 700
 2306E-2RS1TN9   30   72   27   22.5   6.8   18 000   6 700
 2306K   30   72   27   31.2   8.8   18 000   13 000
 2306M   30   72   27   31.2   8.8   18 000   13 000
 2307E-2RS1KTN9   35   80   31   26.5   8.5   15 000   5 600
 2307E-2RS1TN9   35   80   31   26.5   8.5   15 000   5 600
 2307EKM   35   80   31   39.7   11.2   16 000   12 000
 2307EKTN9   35   80   31   39.7   11.2   16 000   12 000
 2307EM   35   80   31   39.7   11.2   16 000   12 000
 2307ETN9   35   80   31   39.7   11.2   16 000   12 000
 2308E-2RS1KTN9   40   90   33   33.8   11.2   13 000   4 800
 2308E-2RS1TN9   40   90   33   33.8   11.2   13 000   4 800
 2308EKTN9   40   90   33   54   16   14 000   10 000
 2308EM   40   90   33   54   16   14 000   10 000
 2308ETN9   40   90   33   54   16   14 000   10 000
 2309E-2RS1KTN9   45   100   36   39   13.4   12 000   4 300
 2309E-2RS1TN9   45   100   36   39   13.4   12 000   4 300
 2309EKTN9   45   100   36   63.7   19.3   13 000   9 000
 2309EM   45   100   36   63.7   19.3   13 000   9 000
 2309ETN9   45   100   36   63.7   19.3   13 000   9 000
 2310   50   110   40   63.7   20   12 000   8 500
 2310E-2RS1KTN9   50   110   40   43.6   14   11 000   4 000
 2310E-2RS1TN9   50   110   40   43.6   14   11 000   4 000
 2310K   50   110   40   63.7   20   12 000   8 500
 2310M   50   110   40   63.7   20   12 000   8 500
 2311   55   120   43   76.1   24   11 000   7 500
 2311K   55   120   43   76.1   24   11 000   7 500
 2311KM   55   120   43   76.1   24   11 000   7 500
 2311M   55   120   43   76.1   24   11 000   7 500
 2312   60   130   46   87.1   28.5   9 500   7 000

WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in bearing business with more than eighteen years, export to worldwide countries, as America, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation customers. WHCD Bearing company will provide professional and prompt solution for customers.Original Quality and Warranted, and Bearing experts team support customer service. Various bearing types for customer choose:

Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
