TIMKEN ANGULAR CONTACTBALLBEARING 7207B

TIMKEN Angular contact ball bearings are available from Timken in single- row 7200 and 7300 series and double-row 3200 and 3300 series.

Designed to take both radial and thrust loading, angular contact ball bearings are commonly used in pumps, compressors, electric motors and many other industrial applications.

Our expanded portfolio includes a range of single-row standard, single-row universally matched, and double-row designs. These angular contact ball bearings follow ISO standards and are dimensionally interchangeable with competitor metric products.

Standard design angular contact ball bearings are in applications when one bearing is used for each bearing side. The mounting can be either back-to-back (DB, Fig. 4) or face-to-face (DF, Fig. 5). Because standard design bearings need to be adjusted for optimum performance, they are not suitable to mount immediately adjacent to each other.

Get A Quote
Contact Us

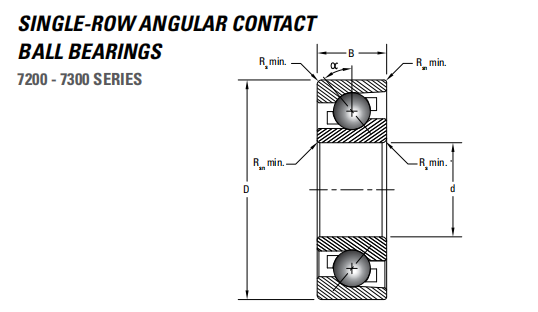

TIMKEN SINGLE-ROW ANGULAR CONTACT BALL BEARINGS

various part numbers in stock, welcome inquiry. Fast shipment within 2-3 working days.

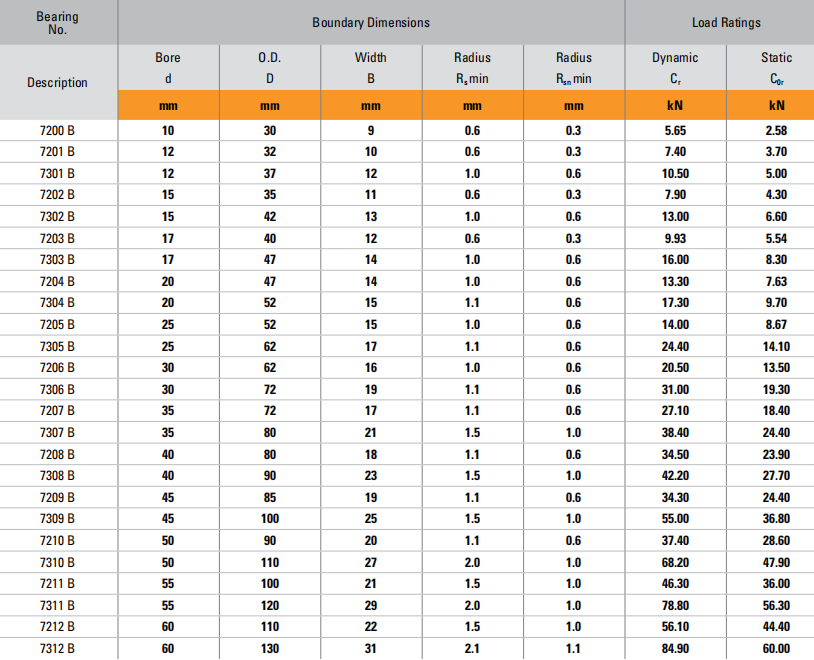

Bearing Boundary Dimensions Load Ratings
No.
Bore O.D. Width Radius Radius Dynamic Static weight
Description d D B Rs min Rsn min Cr C0r
mm mm mm mm mm kN kN
7200 B 10 30 9 0.6 0.3 5.65 2.58 0.03
7201 B 12 32 10 0.6 0.3 7.4 3.7 0.04
7301 B 12 37 12 1 0.6 10.5 5 0.05
7202 B 15 35 11 0.6 0.3 7.9 4.3 0.05
7302 B 15 42 13 1 0.6 13 6.6 0.06
7203 B 17 40 12 0.6 0.3 9.93 5.54 0.07
7303 B 17 47 14 1 0.6 16 8.3 0.11
7204 B 20 47 14 1 0.6 13.3 7.63 0.1
7304 B 20 52 15 1.1 0.6 17.3 9.7 0.14
7205 B 25 52 15 1 0.6 14 8.67 0.13
7305 B 25 62 17 1.1 0.6 24.4 14.1 0.23
7206 B 30 62 16 1 0.6 20.5 13.5 0.2
7306 B 30 72 19 1.1 0.6 31 19.3 0.35
7207 B 35 72 17 1.1 0.6 27.1 18.4 0.29
7307 B 35 80 21 1.5 1 38.4 24.4 0.47
7208 B 40 80 18 1.1 0.6 34.5 23.9 0.36
7308 B 40 90 23 1.5 1 42.2 27.7 0.64
7209 B 45 85 19 1.1 0.6 34.3 24.4 0.41
7309 B 45 100 25 1.5 1 55 36.8 0.85
7210 B 50 90 20 1.1 0.6 37.4 28.6 0.47
7310 B 50 110 27 2 1 68.2 47.9 1.11
7211 B 55 100 21 1.5 1 46.3 36 0.61
7311 B 55 120 29 2 1 78.8 56.3 1.42
7212 B 60 110 22 1.5 1 56.1 44.4 0.78
7312 B 60 130 31 2.1 1.1 84.9 60 1.77

WHCD Bearing Co.,Ltd is professional bearing supplier, engaged in bearing business with more than eighteen years, export to worldwide countries, as America, European, Middle-East, Southeast Asia …etc. with plenty long-term cooperation customers. WHCD Bearing company will provide professional and prompt solution for customers.Original Quality and Warranted, and Bearing experts team support customer service. Various bearing types for customer choose:

Bearing Types:
Self-aligning ball bearing
Cylindrical roller bearing
Spherical roller bearing
Tapered roller bearing
Angular contact ball
Needle roller
Deep groove ball bearing
Axial deep groove ball
Pillow block bearing and units
LM/Linear Guide
